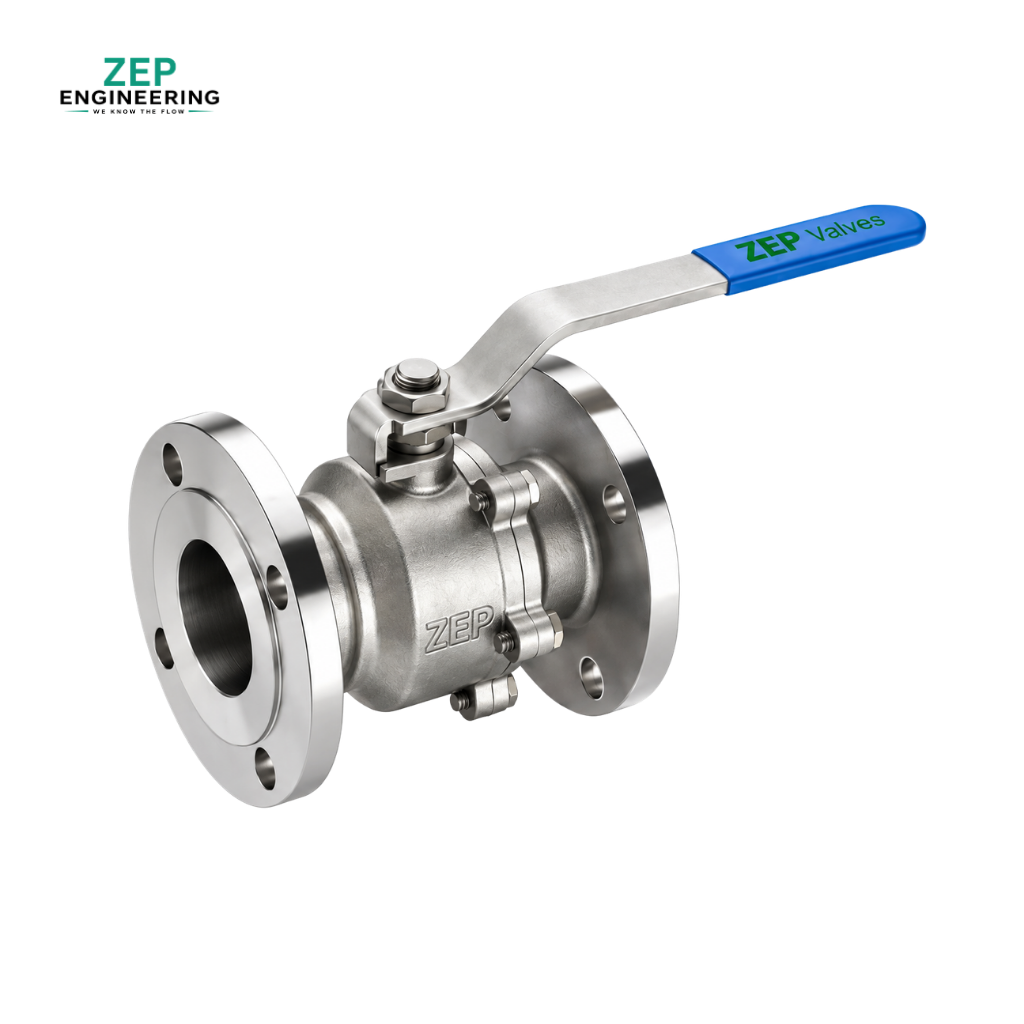

Optimized Process Flanged Ball Valves
Precision-Machined Full Bore Path
Enhanced Fugitive Emission Sealing
Anti-Static Stem Design as Standard
Cryogenic and High-Heat Optimized Alloys
Industrial Valve Solutions
ZEP Engineering
Design Features
MOC:
WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys,Etc.
Valve Design:
Two Piece Construction
Size:
15mm to 250mm (1/2" TO 10")
End Connection:
Flanged End (ASME B16.5)
Pressure Class:
150#
Operation:
Manual
Design &
Manufacturing
Standard:
Manufacturing
Standard:
ISO 17292 / BS 5351 / API 6D
Testing &
Inspection:
Inspection:
API 598 / BS 6755
Fire Safe:
On Request
Valve Bore:
Full Bore
Face to Face:
ASME B16.10
Temp. Range:
-20 TO 180°C

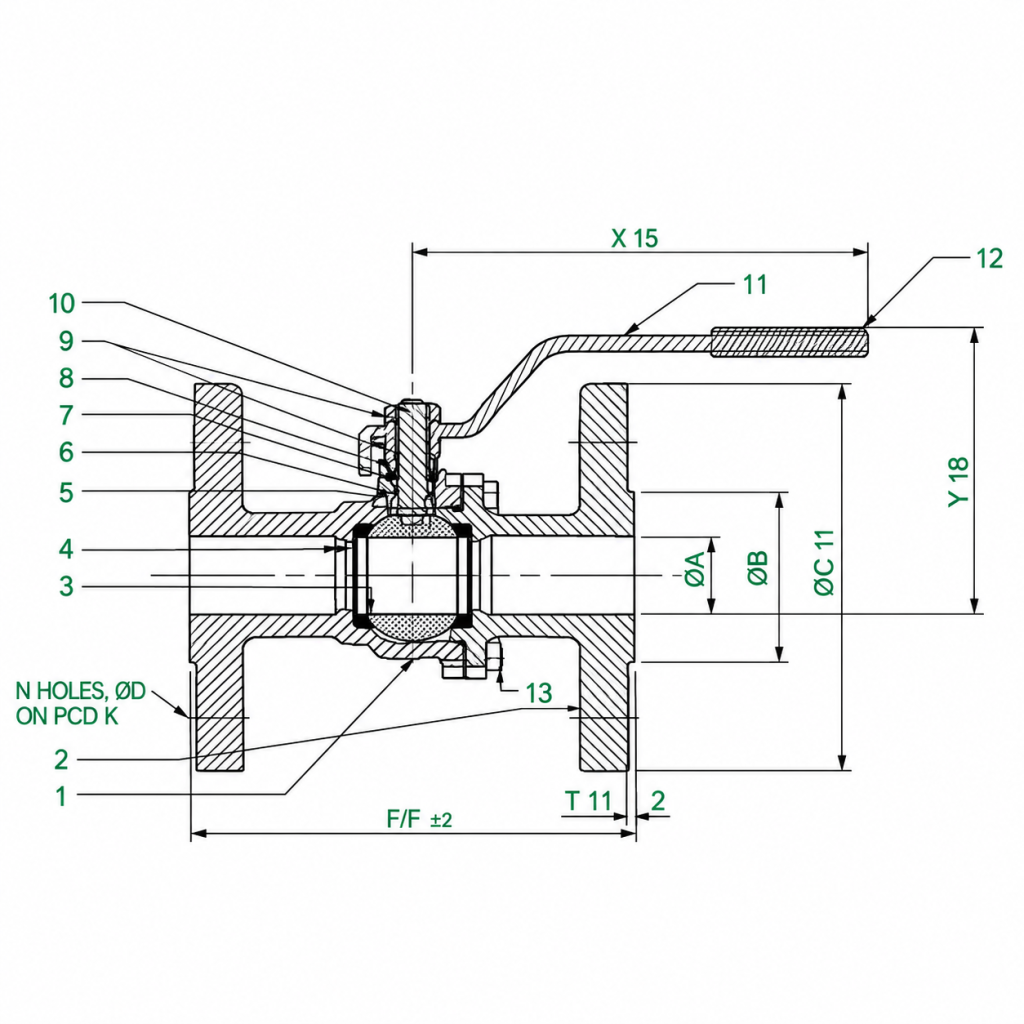

Technical Specifications
| No. | Description | Material |
|---|---|---|
| 1 | Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| 2 | Tail Piece | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| 3 | Ball (Hollow/Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| 4 | Seat Ring | PTFE/GFT/CFT/TFM |
| 5 | Body Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| 6 | Stem Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| 7 | Gland Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| 8 | Gland | SS304/SS316/SS304L/SS316L/SS410 |
| 9 | Lock Nut | SS202/SS304/SS316/MS |
| 10 | Stem | SS304/SS316/SS304L/SS316L/SS410 |
| 11 | Handle | SS202/SS304/SS316 |
| 12 | Sleeve | PVC |
| 13 | Bolt | SS202/SS304/SS316/B7/MS |
Benefits & Application
- ✓ Full port - higher flow rates & No Pressure Drops
- ✓ Blowout-proof Stem Design
- ✓ Anti Static Device (On Request)
- ✓ Less Joint - Chance of low leakage
- ✓ Fire Safe Design (On Request)
- ✓ More economical than 3-piece Design
- ✓ Low cost compared to other full port options
Testing Parameters
| Test Type | Unit-Kg / Cm² | PSIG |
|---|---|---|
| Hydro. Shell | 32 | 430 |
| Hydro. Seat | 22 | 315 |
| Air/Pneumatic | 7 | 80 |
